SZ Express

* Maximum Resolution 640x480 (VGA) provides superior image quality
* Simultaneous MPEG-4 and Motion JPEG video stream
* Excellent Image Quality up to flexible 30 fps in all resolution for optimum bandwidth use
* Superior Low-Light Performance with 6 Night-Vision LEDs down to 0 Lux
* Wireless( IEEE 802.11g/b) Networks Connection
* Two-way Audio with Built-In Microphone
* Optimal Synchronization of Audio and Video
* Support Live Video Viewing on Microsoft Live Messenger (available soon through 16.03 firmware upgrade)
* Mobile Phone Streaming Live Video through 3GPP / ISMA / RTSP
* Mobile Phone Live Image through 2.5 WAP
* Multi-level Password Protection for Restricting Camera Access
* Built-In Multi-Window Motion Detection (3 detection areas)
* Video Buffer makes the Streaming Smoother
* UPnP for Fast and Easy Installation
* DDNS Supported
* Bundled 16 Channel Surveillance Software
* User-friendly & Multi-lingual UI

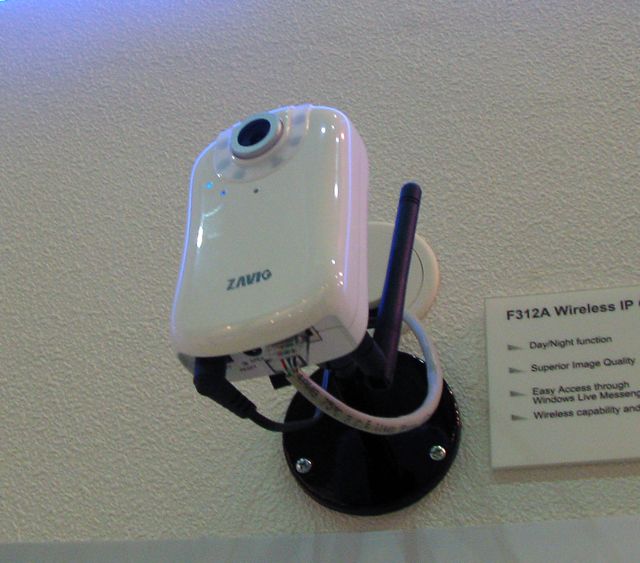

Zavio F312A Wireless IP Camera
- Models： ZAVIO F312A
- Image Sensor： 1/4" Progressive CMOS Sensor
- Zoom： 10x Digital
- Minimum Illumination： 0 Lux at F2.0 with Night-vision LEDs on
- Video Compression： Motion JPEG & MPEG-4
- Max Resolution： 640 x 480(VGA)
- Frame Rate： Motion JPEG: Up to 30 fps in all resolutions
MPEG-4: Up to 30 fps in all resolutions
- Video Streaming： Simultaneous Motion JPEG and MPEG-4
Controllable frame rate and bandwidth
3GPP/ISMA RTSP compatible
- Audio： Two-way(full duplex)
Built-in microphone
- Alarm and Event Management： Built-in multi-window motion detection
Image upload over FTP, e-mail and HTTP
Notification over TCP and e-mail

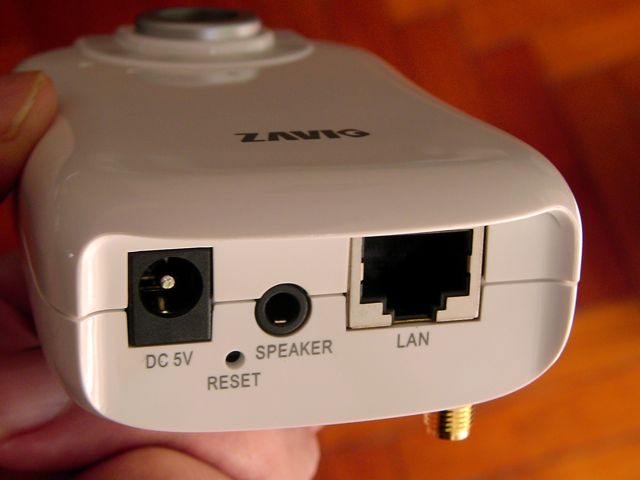

- Connectors：

Ethernet RJ-45, audio line out
- Processors and Memory： ARM9 based 32-bit RISC CPU
32MB RAM, 4MB Flash
- Operation System： Linux 2.4
- Power： 5V DC,max 4.5 W
- Operating Conditions： 0-45 °C (32-113 °F)
Humidity 20-80% RH(non-condensing)
- Minimum System Requirements： Pentium III CPU 500 MHz or higher,
or equivalent AMD 128MB RAM
Windows 98,ME,2000,XP,Vista
Internet Explorer 6 or later
- Supported Protocols：

TCP/IP, DHCP, PPPoE, ARP, ICMP, FTP, SMTP, DNS, NTP, UPnP, RTSP, RTP, HTTP, TCP, UDP, 3GPP/ISMA RTSP
- Video Surveillance Software： Professional surveillance application for
viewing, recording and archiving up to 16
cameras
- Approvals： CE,FCC,RoHS
- Dimensions： 104 x 63 x 35mm
