Phone functions
Phone functions:
3 ways to make or receive call – handset/headset/hand-free speaker;
Support caller ID , auto answer , DND and call reject;
Support speed dial , redial , mute and call holding;
Support point to point calls via IP address and SIP URL;
Support 3 ways conference call;
Support call transfer( blinded transfer , attendant transfer and semi-attendant transfer);
Support call forward ( always forward , busy forward or no answer forward);
Support hotline and flexible dial plan configuration;
IP PBX function:
Anonymous Call, Anonymous Call Rejection;
Synchronization Message Waiting Indicator (MWI);
Voicemail , call recording;
Call on hold , call pick up;
Paging and intercom;
Hardware Specification
2*263MHZ dual core MIPS processor
3 inch 132*52 FFTN LCD
30 keys;
Dual RJ45 10.100Mhz Ports;
2 RJ9 ports ( for handset and headset);
Power adapter AC 90-240V , DC 5V1 A;
Standby power consumption <1W , working power consumption 2W;
Support PoE ( power over ethernet);

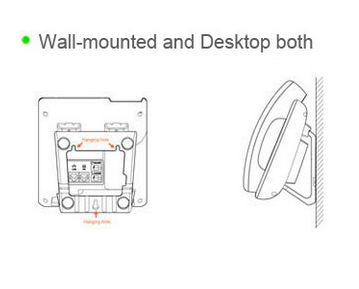

Support wall mounting;
Working temperature : -10 ℃– 50 ℃;
Working humid : 10%-95% ;
Network features
Support SIP V1(RFC2543), V2(RFC3261);
Support backup server;
Support proxy server and point to point connection;
Support IP/DHCP/PPPoE dial;
Support FTP/DHCP/PPPoE client;
Support Telnet/HTTP/HTTPS service;
Support SNTP protocol;
Support DNS SRV（RFC3263;
Support DNS client and buil-in NAT/DHCP service;
Support STUN;
Support 3 DTMF ways,RFC2833 and SIP INFO;
Support router and bride mode;
Logout on web GUI;
Software features
UI and WEB Support multiple language;
User friendly UI and WEB design;
Configuration wizard for first time use;
Support 200 contacts in phone book and 200 call history record;
Support dial assistant , match the number in smart ways;
Support black list;
Auto adjusted background light ;
Adjustable level of background light brigntness;
|
Voice feature
Support HD voice codec L16G and G.722;
Support G.711a/u,G.726，G.729a/b，G.723,iLBC codes;
Support VAD(Voice Activity Detector) and CNG(conformation noise gain);
Support AJB ( auto Jit buffer) , AEC ( voice echo canceller) AGC ( voice gain control);
10 broadband rings and 2 customized rights by users;
Management
Support 3 ways to manage the phones : Web GUI , phone keyboard and auto configuration in FTP/TFTP/HTTP/HTTPS/PnP;
Configuration wizard on web UI;
Support SNMP;
Security
Support VLAN;
Support L2TP VPN;
Support 802.1X;
Support 2 different access levels- admin and user;
Support SRTP and HTTPS protocol ( client/server);
Package
Dimension of single unit （17.0 x 18.2 x 13.2）;
Weight :1.5KG;
Packing size （26.6x 20.7 x 7.5）cm;
Preserve temperature -40 - -70℃;
Preserve humid level: 10-95%;
|
|
